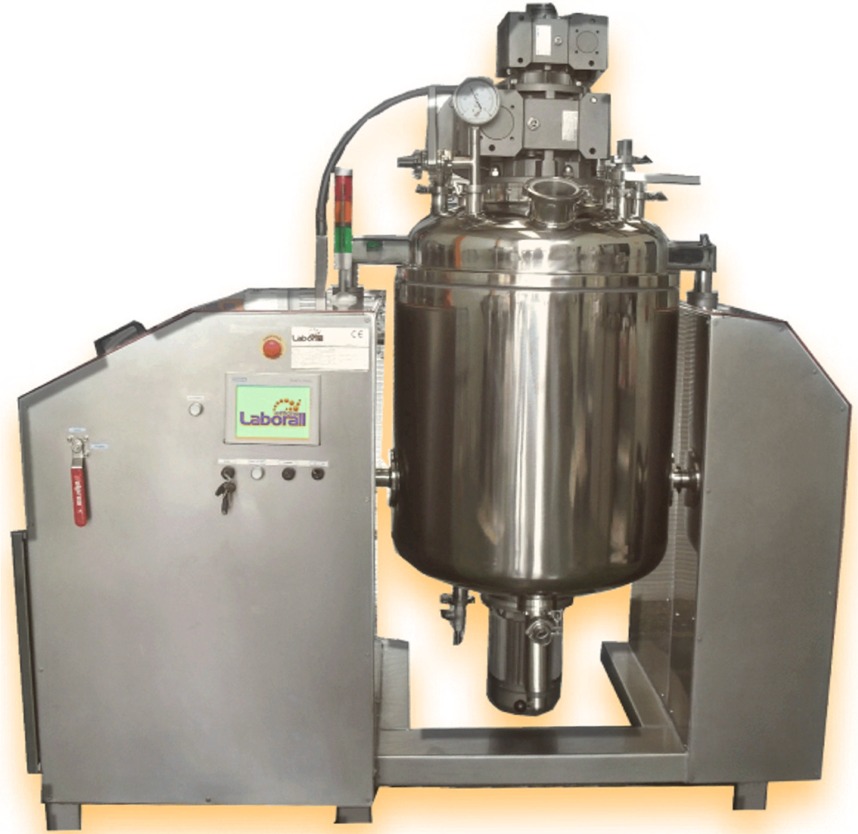

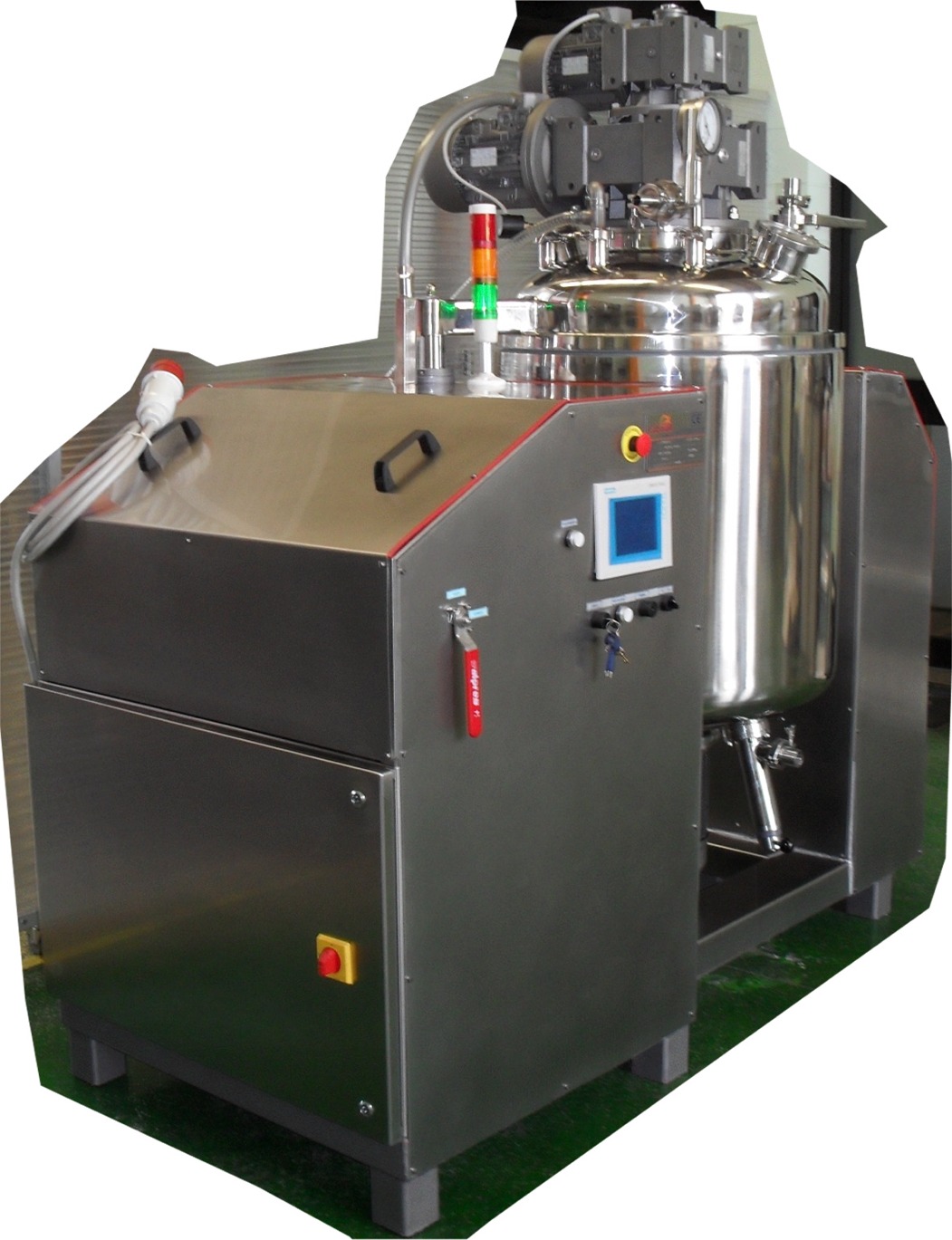

Jupiter Compact

Compact is the answer to every needing of zero pollution.

It's the first turboemulsifier capable to heat with resistors and to cool with a chilling unit to optimize the working and the waste of water and energy.

Inside its compact dimensions, as the whole Laborall line of products, the turboemulsifier Compact contains a refined heating-cooling system able to increase the temperature of the product in process of 1-1,5 C degrees per minute and to chill the same bulk of 1-2 C degrees per minute. The heating and cooling speed can be programmed according to several needing.

The first device projected and built to maximize productivity and minimize emissions.





Capacity: 150 - 1200 Liters.



Application Areas: Cosmetics, Herbal, chemical, food, cleaning.

Finishings: Liquid, semi solid, creams.







 Model Width Height Lenght  Capacity  Weight Total Kw.
25/30 1200 1400  1950  800 25-30 10
50/60 1400 1900 2200 800 50-60 13
100/120 1600 2200 2800 1000 100-120 15
150/200 1800 2200 3000 1000 150-200 20
300/350 2000 2500 3600 1200 300-350 25
500/600 2200 3000  4000 1200 500-600 30
750/850 2500 3000 4500 1600 750-850 38
1000/1200 2800 3200 5000 1600 1000-1200 45
